Foreword

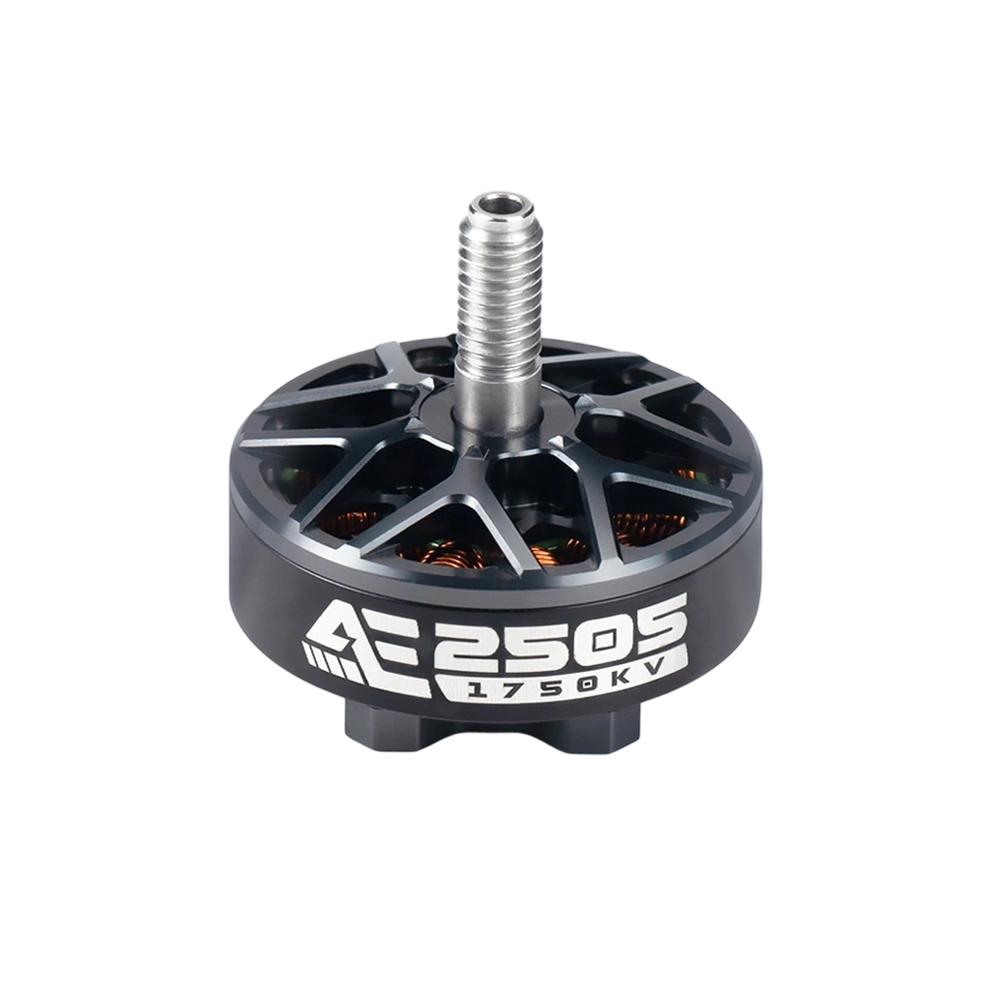

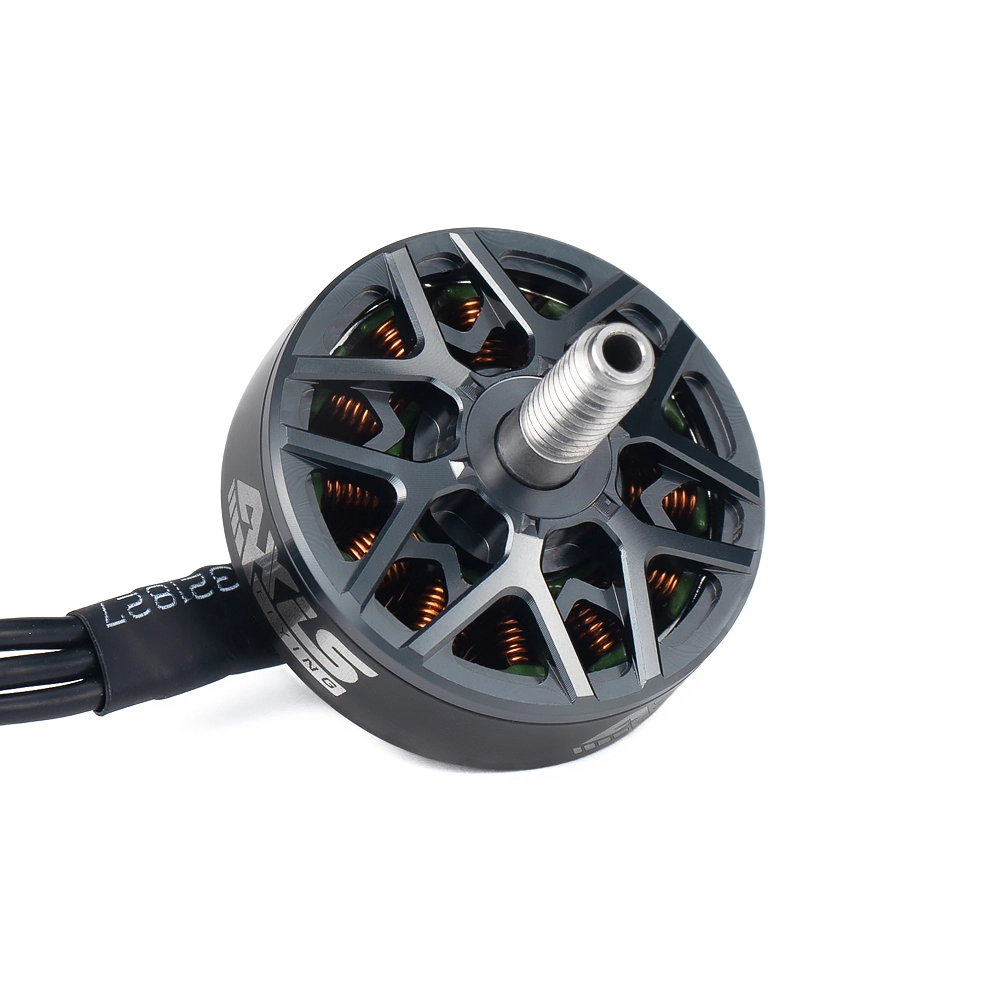

Axisflying AE2505 is a high-performance freestyle motor designed for 5-inch FPV drones. It combines smooth cinematic flow and brutal sbang power, offering buttery-smooth throttle linearity and instant torque response for professional freestyle pilots.
Feature
- Dual flying style: cinema-smooth flow & aggressive sbang tuning
- Laser-linear throttle control with zero desync
- Monster torque for instant acceleration & snappy response
- Anti-desync magnetic design, stable at low RPM
- Oversized stator for unmatched torque output
- High efficiency & durable for long-time freestyle flight
- Compatible with 6S power for maximum performance
Recommended Configuration

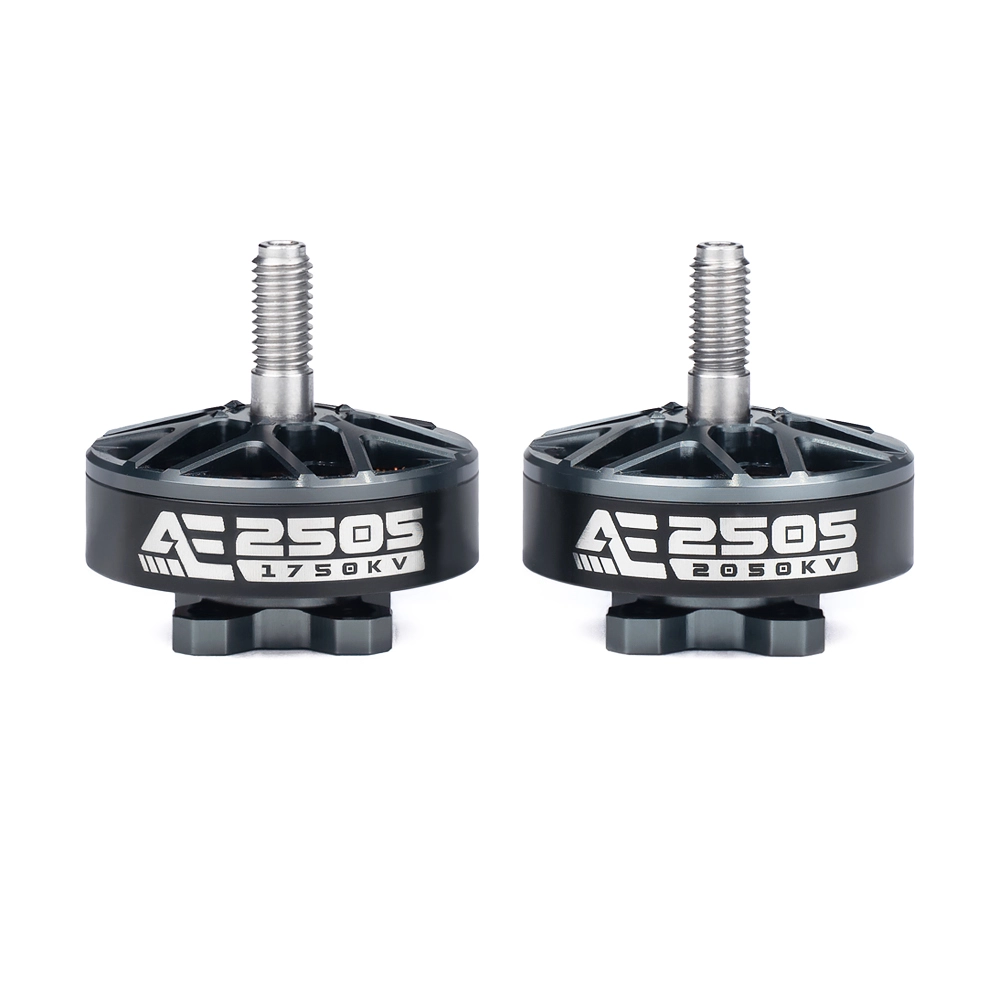

- Motor: Axisflying AE2505 1750KV / 2050KV
- Voltage: 6S LiPo
- Props: 51466 V2 / HQ 6×3×3 / HQ MCK / 51366
- Application: 5-inch FPV freestyle, acro, sbang

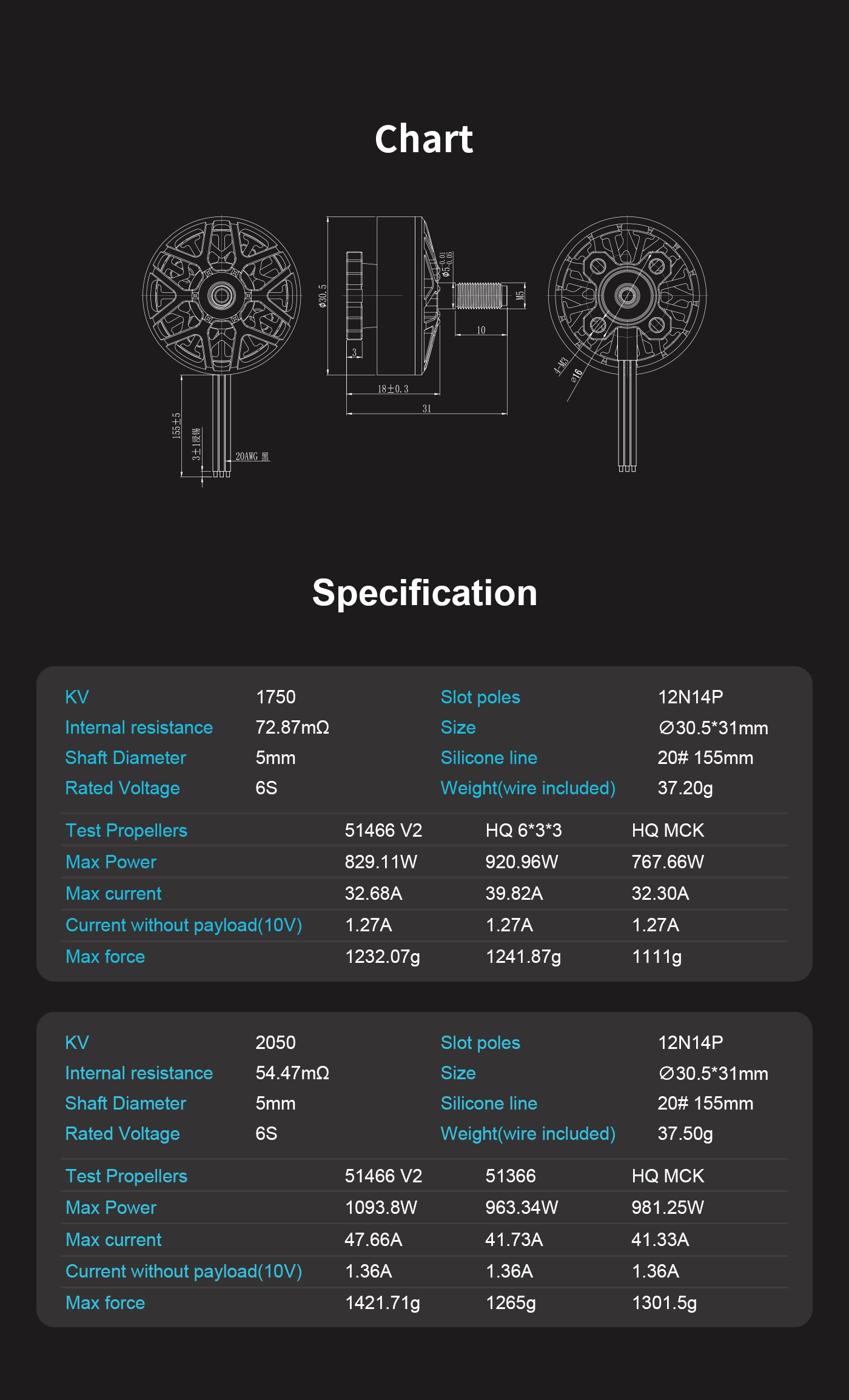

Specifications

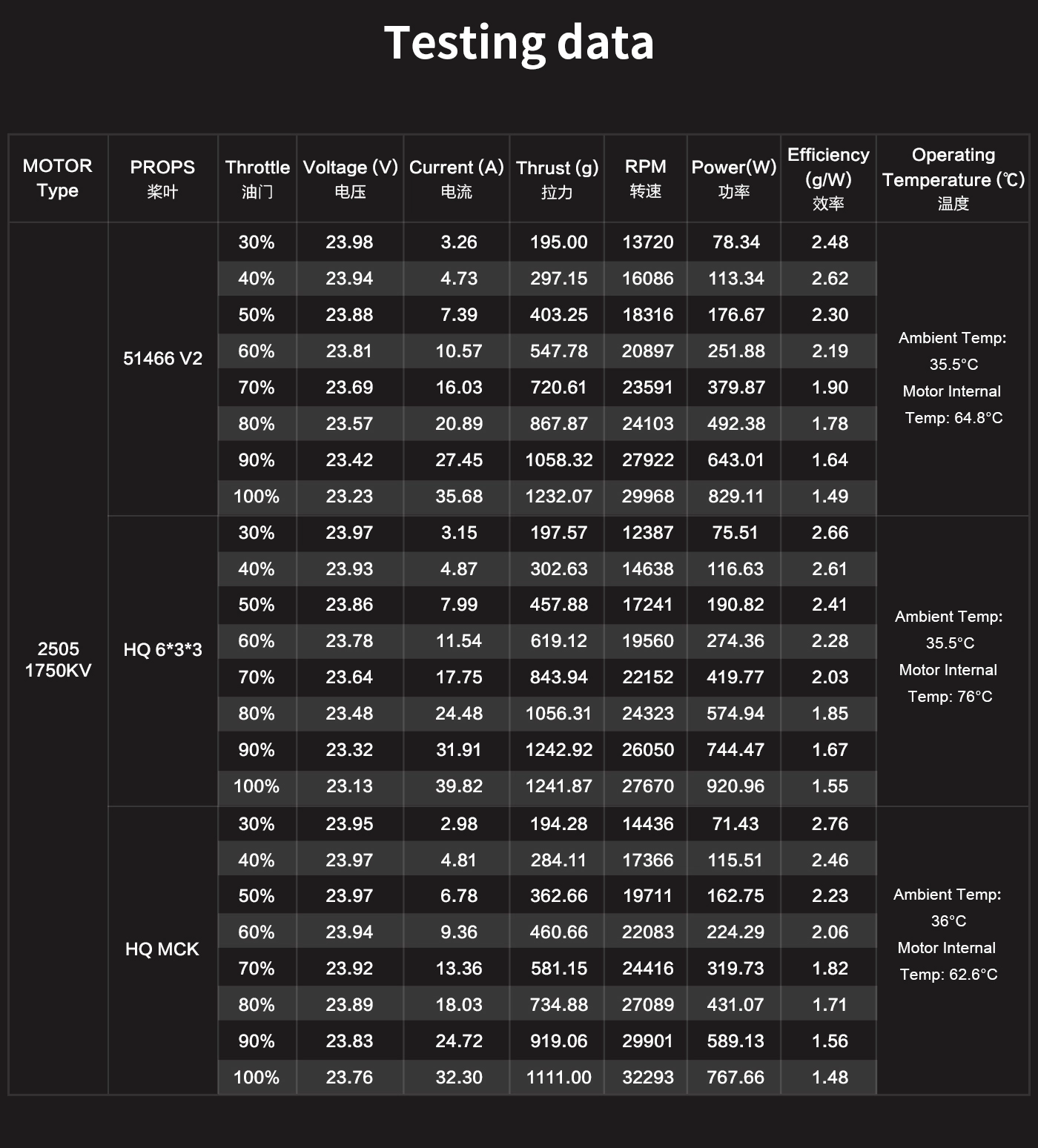

AE2505 1750KV
- KV: 1750KV
- Configuration: 12N14P
- Internal Resistance: 72.87mΩ
- Size: 30.5×31mm
- Shaft Diameter: 5mm
- Silicone Wire: 20# 155mm
- Rated Voltage: 6S
- Weight (with wire): 37.20g
- Max Power: 920.96W
- Max Current: 39.82A
- Max Thrust: 1241.87g
- Idle Current (10V): 1.27A
- Mount: 4×M3

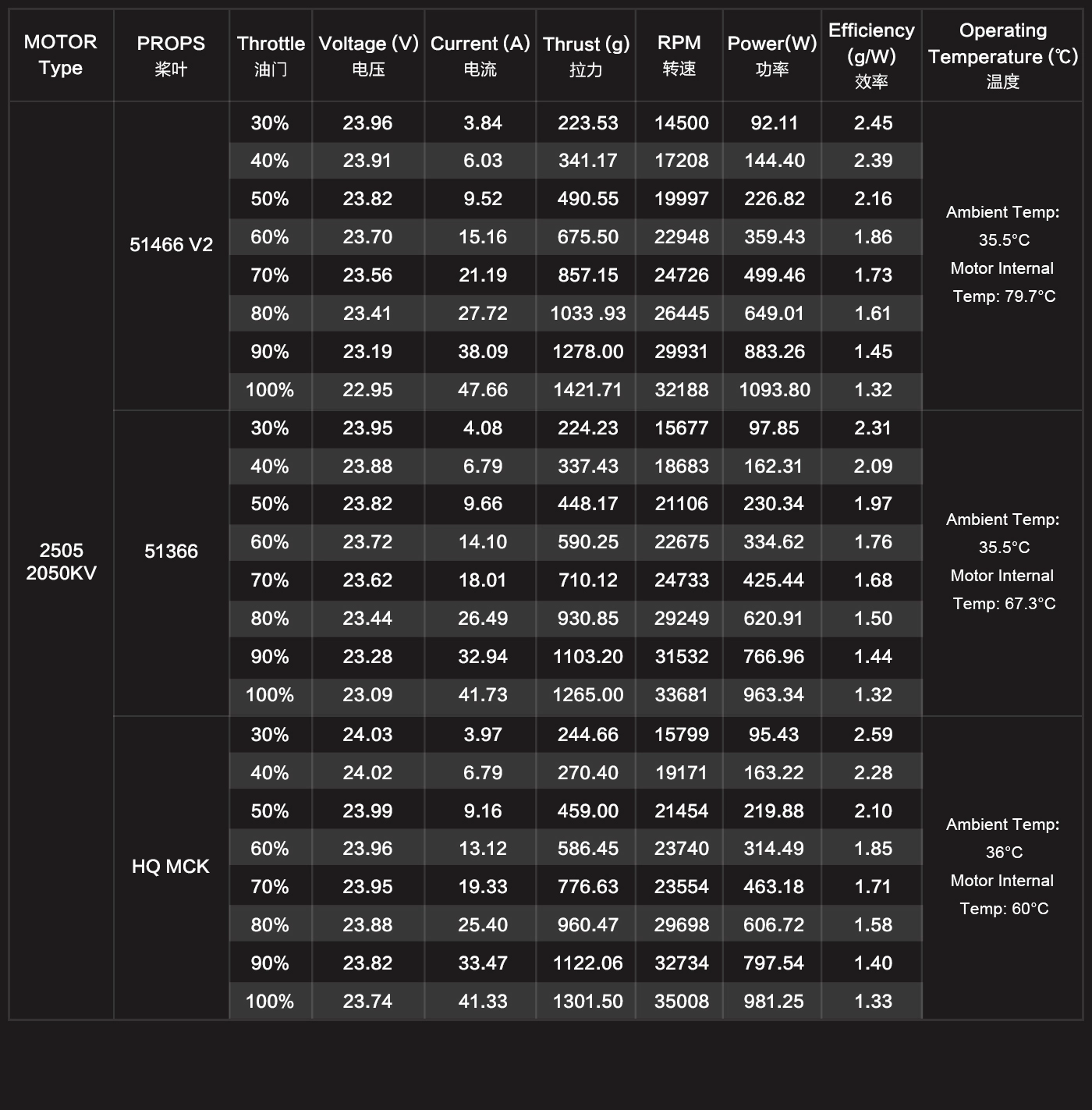

AE2505 2050KV
- KV: 2050KV
- Configuration: 12N14P
- Internal Resistance: 54.47mΩ
- Size: 30.5×31mm
- Shaft Diameter: 5mm
- Silicone Wire: 20# 155mm
- Rated Voltage: 6S
- Weight (with wire): 37.50g
- Max Power: 1093.8W
- Max Current: 47.66A
- Max Thrust: 1421.71g
- Idle Current (10V): 1.36A
- Mount: 4×M3

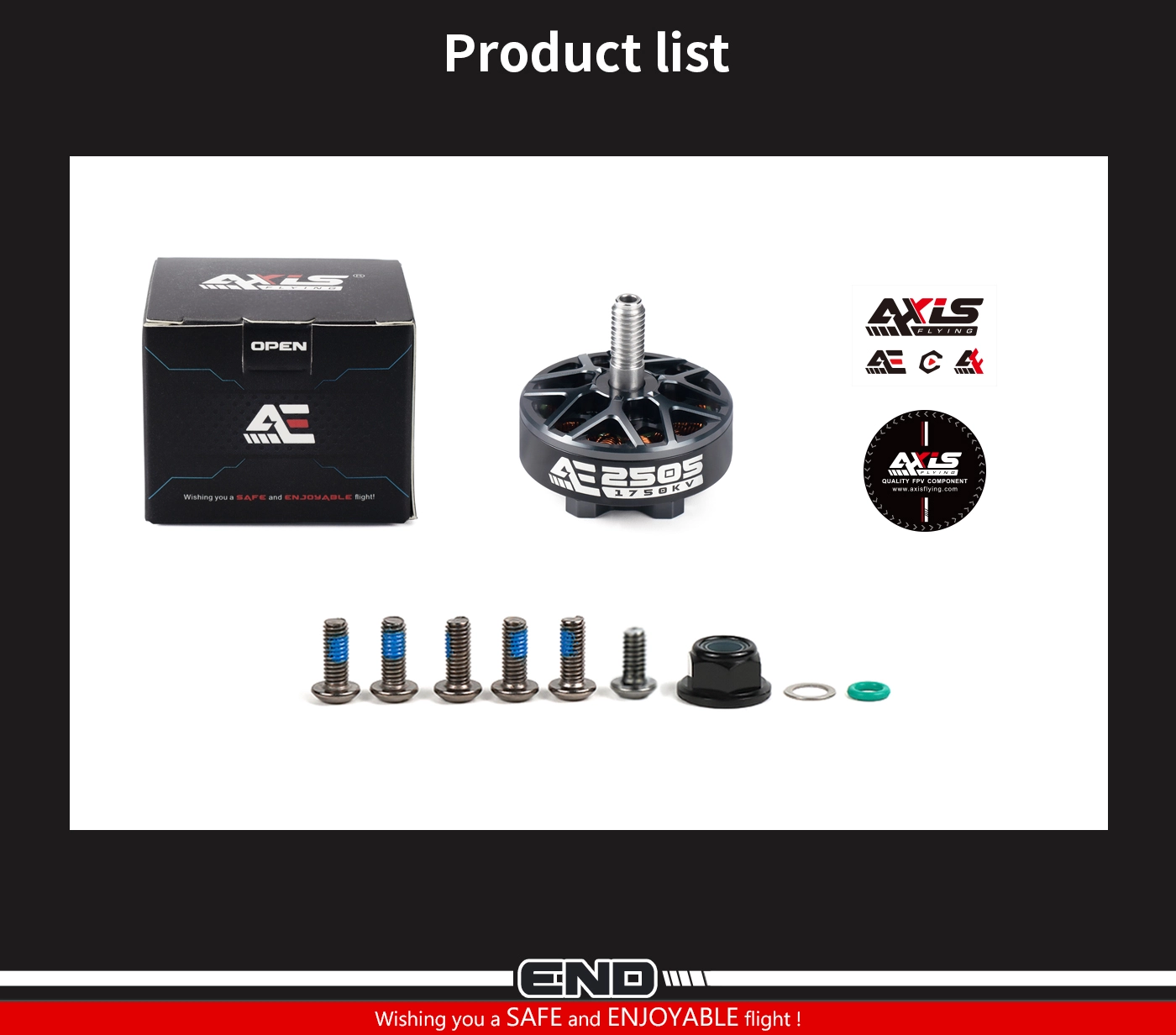

Package Contents
- AE2505 Brushless Motor ×1
- Mounting screws set ×1
- Shaft lock screw & nut ×1
- Damping ring & washer ×1
US Tariff Information
- Tariff: 30% + Section 301 additional duty (as of May 2026)
- Type 86 ($800 duty‑free) is terminated; all commercial shipments are dutiable.
