Foreword
With FPV trending in cinematic and commercial filming, we – Axisflying – are very proud to present you our new C cinematic motor series.
The C series motor has been developed for Cinematic FPV pilots who fly to create and have high-quality requirements.
Cinematic pilots often only have one chance to capture their best shot so they work hard to fine-tune their flying abilities and master: control, anticipation and precision. We bring you today a new cinematic motor to help you enhance your cinematic flying skills.
The C series motor features the perfect balance required for your cinematic flights: smoothness, reactivity and high torque for a delicate control feel along high efficiency to maximize your flight time.
Feature

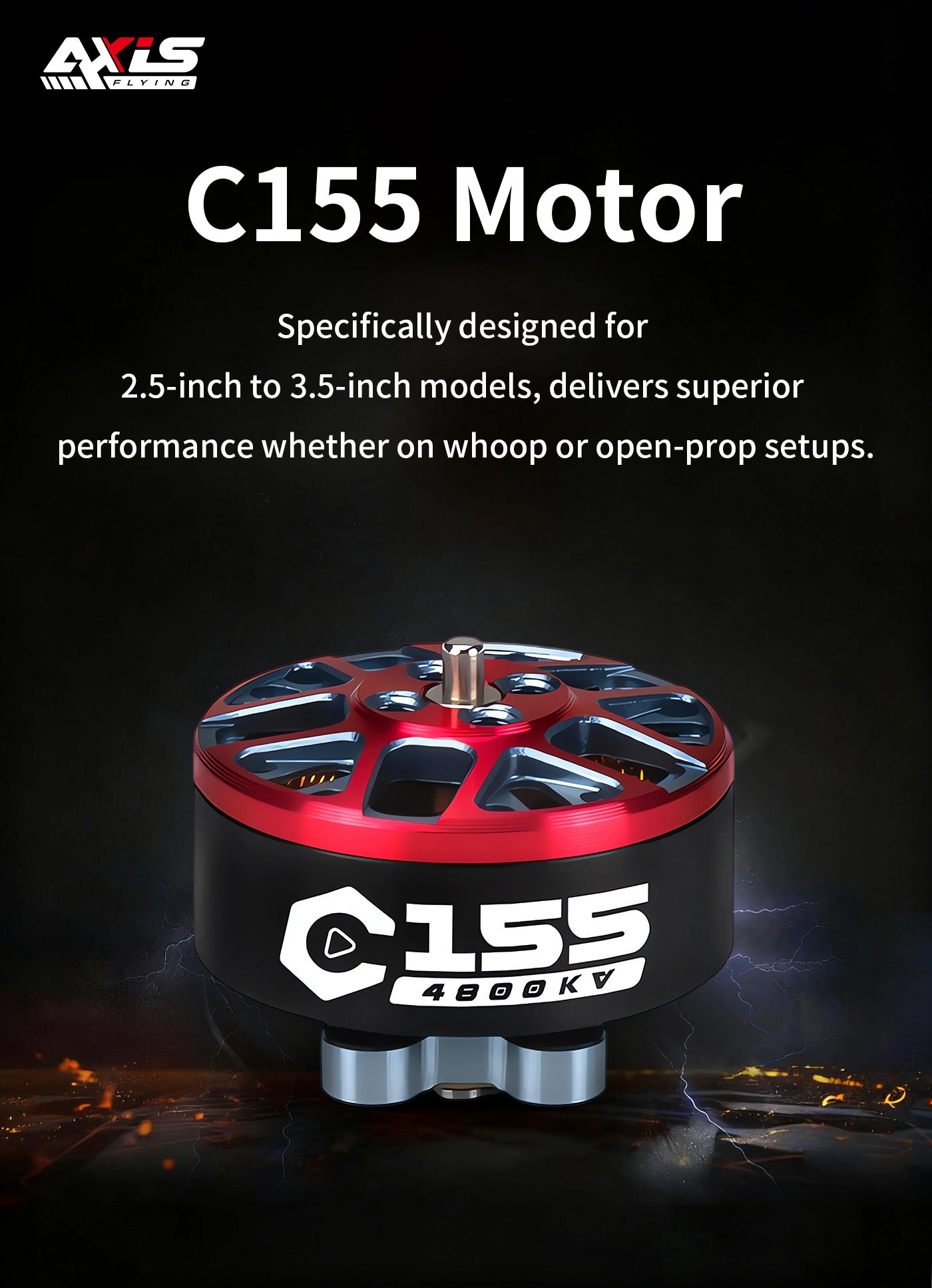

- C155 is specially designed for 2.5–3.5 inch Cinewhoop & cinematic drones.

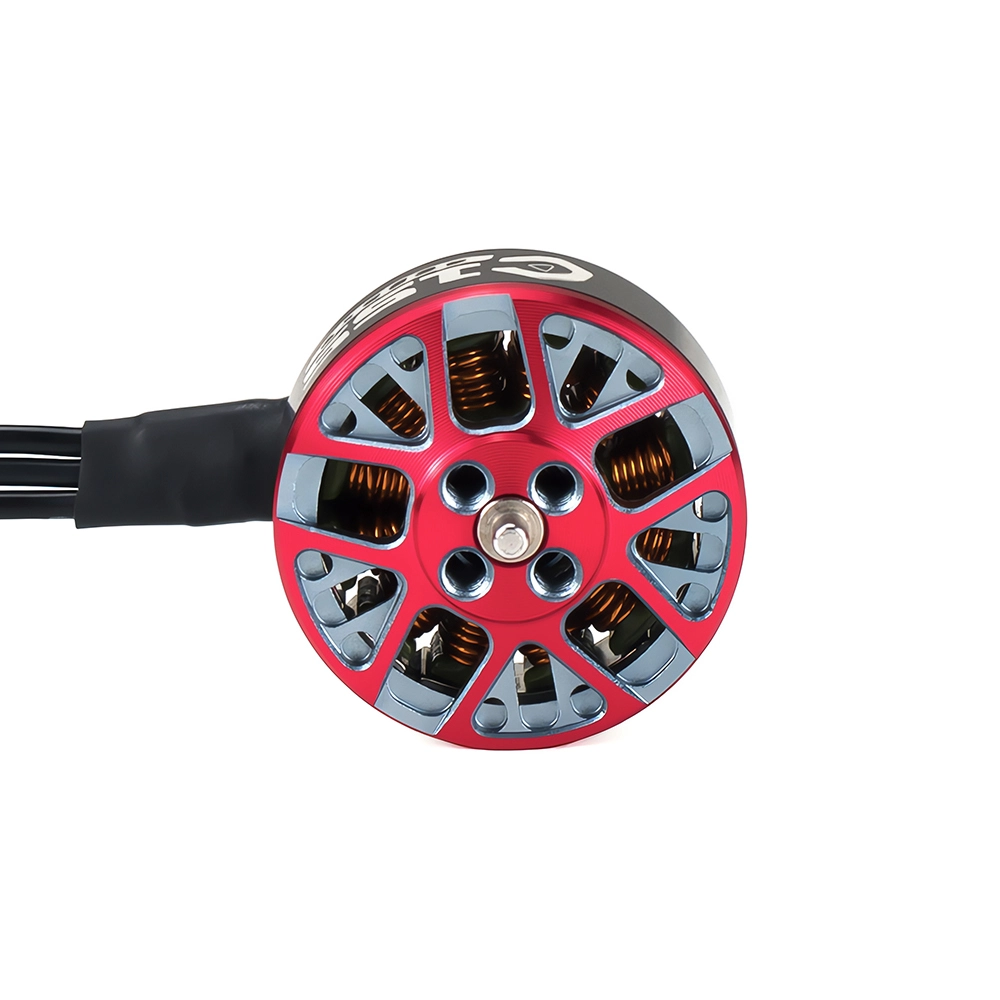

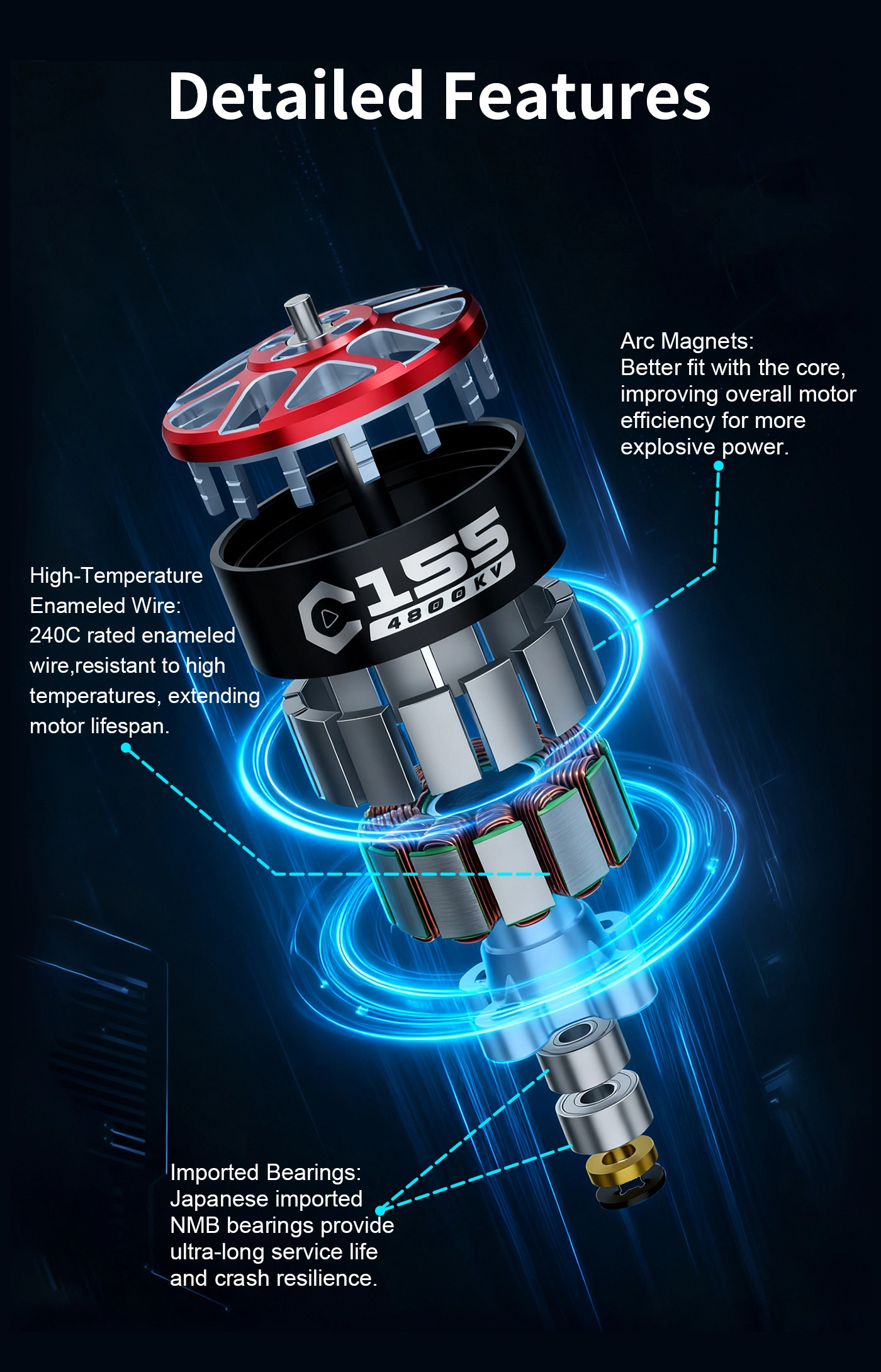

- Multi-spoke crash-resistant structure for enhanced durability.
- Arc magnets for higher efficiency and stronger explosive power.
- 240°C high-temperature enameled wire for extended lifespan.
- Japanese imported NMB bearings for ultra-long service life.

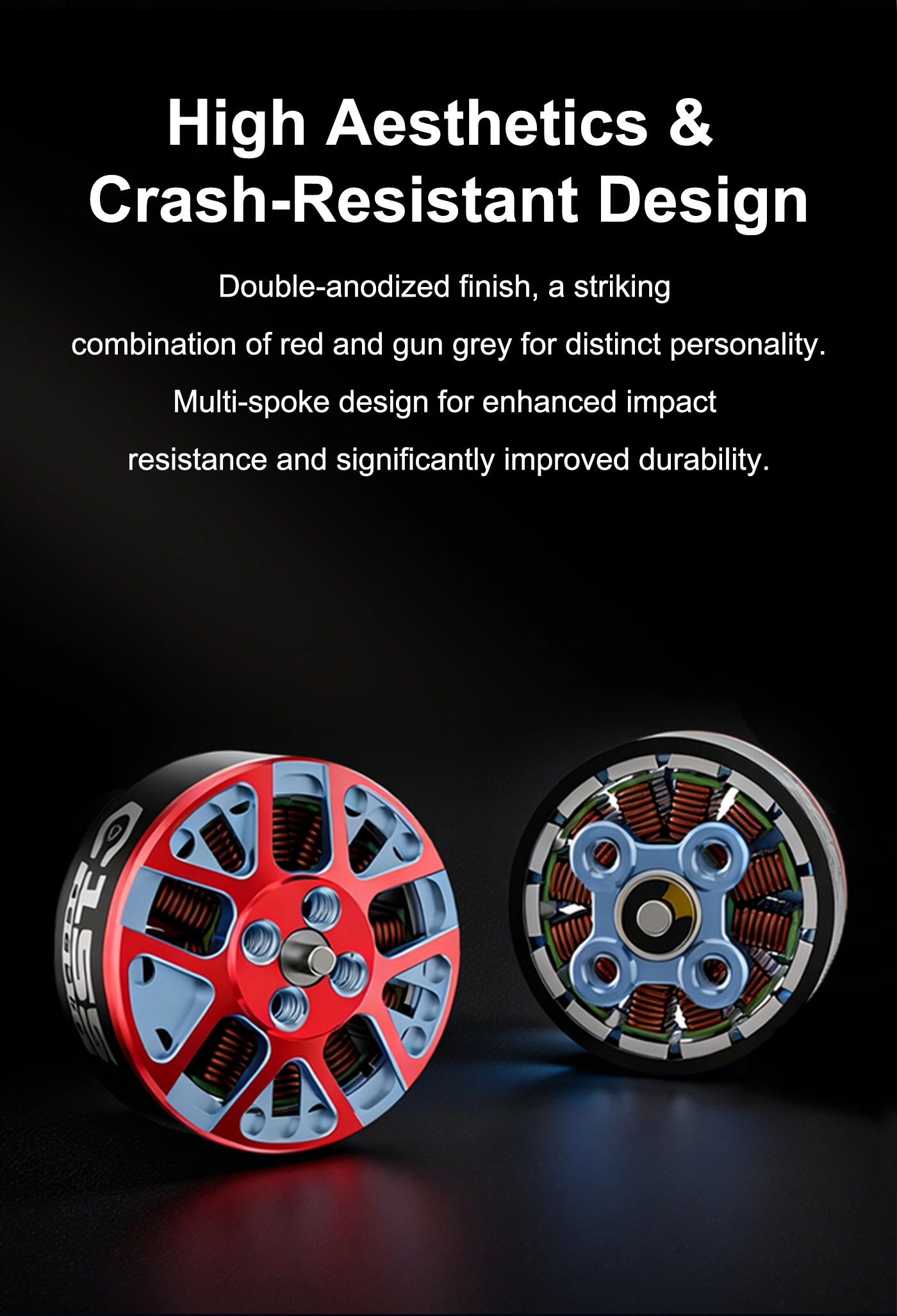

- Dual-anodized red & gun grey finish for high aesthetics.
- Lightweight body, ideal for small whoop and open-prop builds.
Recommended Configuration
- Motor: Axisflying C155 4800KV
- Voltage: 3–4S LiPo
- Props: 2520 / 3028 / D63 / T3.5×2.5×3
- Application: 2.5–3.5 inch Cinewhoop, cinematic drones

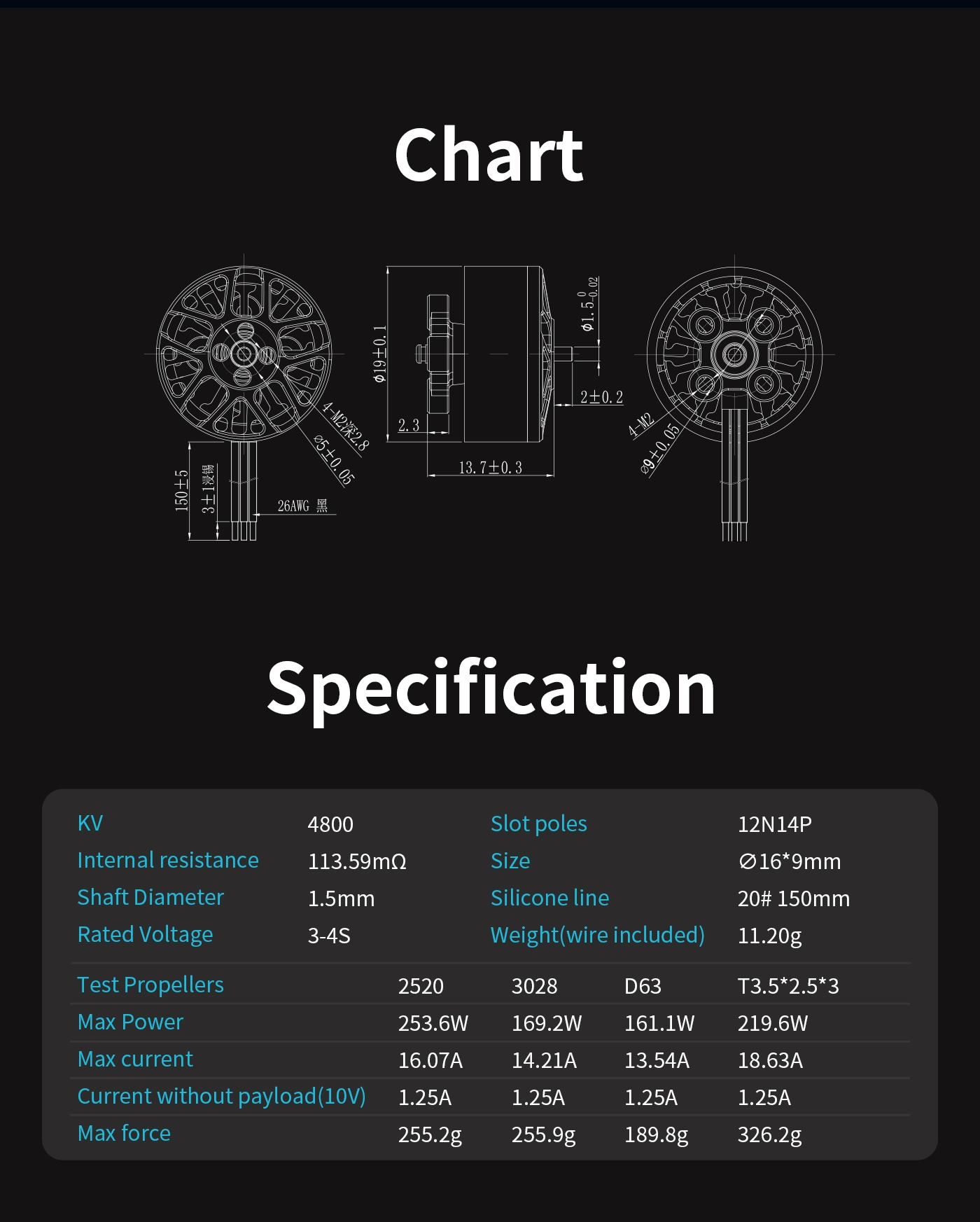

Specifications

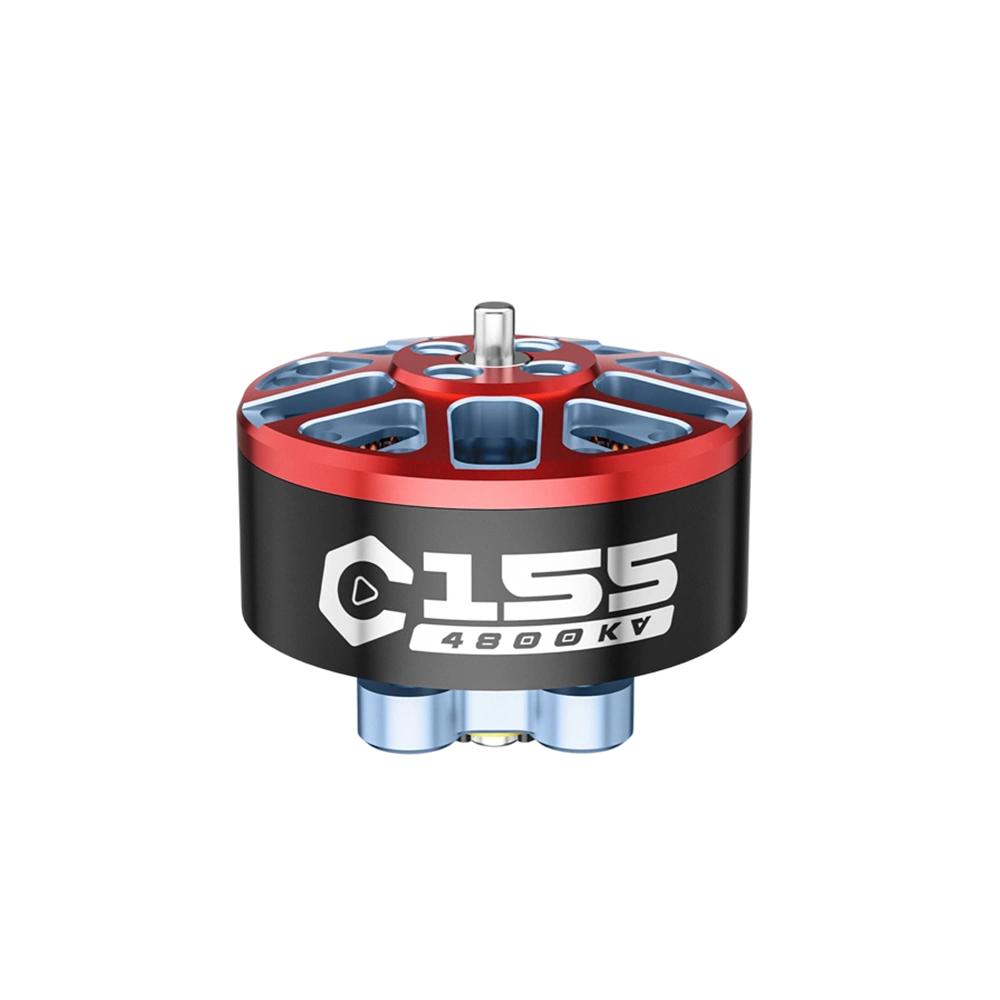

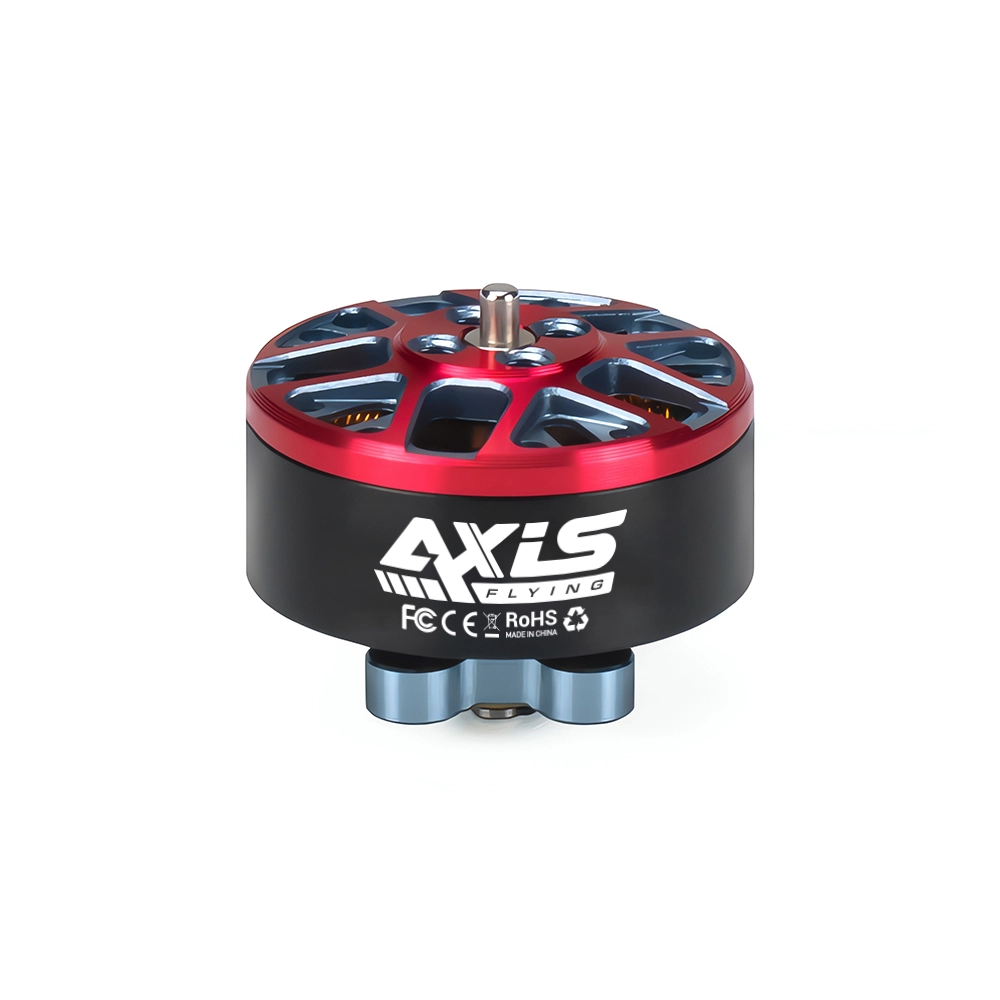

- Model: C155
- KV: 4800KV
- Slot poles: 12N14P
- Internal resistance: 113.59mΩ
- Size: Φ16×9mm
- Shaft Diameter: 1.5mm
- Silicone line: 20# 150mm
- Rated Voltage: 3–4S
- Weight (wire included): 11.20g

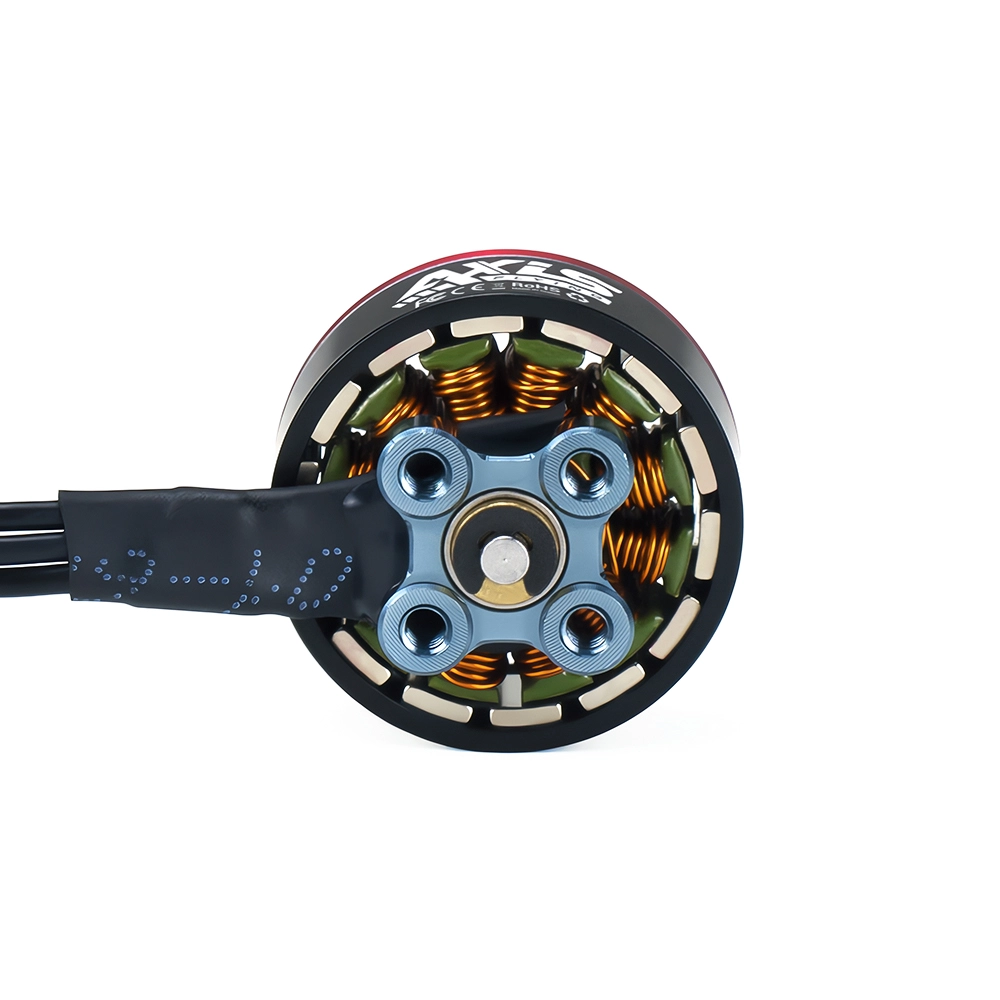

- Mount: 4-M2

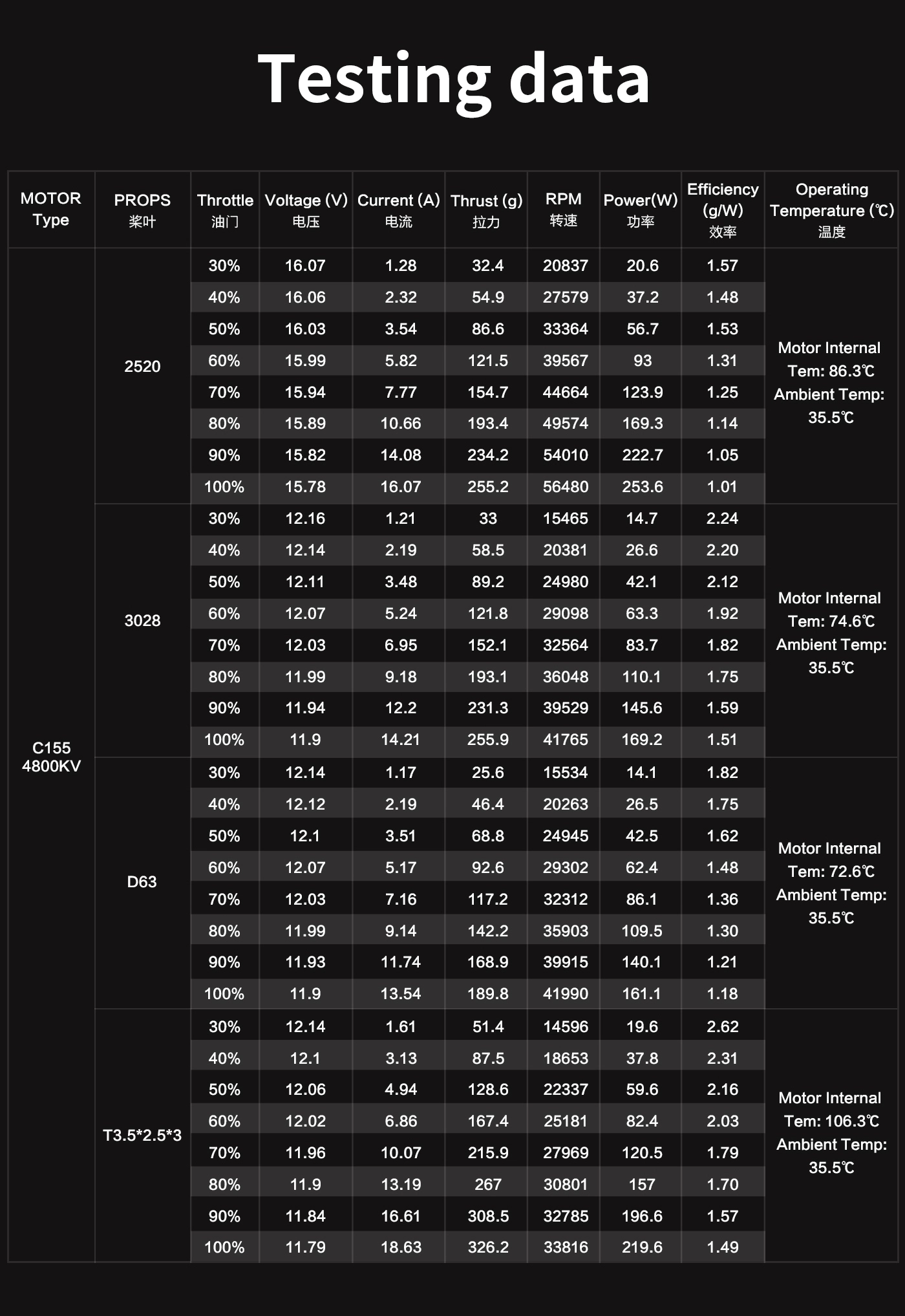

- No-load Current (10V): 1.25A
- Max Power: 253.6W
- Max Current: 16.07A
- Max Thrust: 326.2g

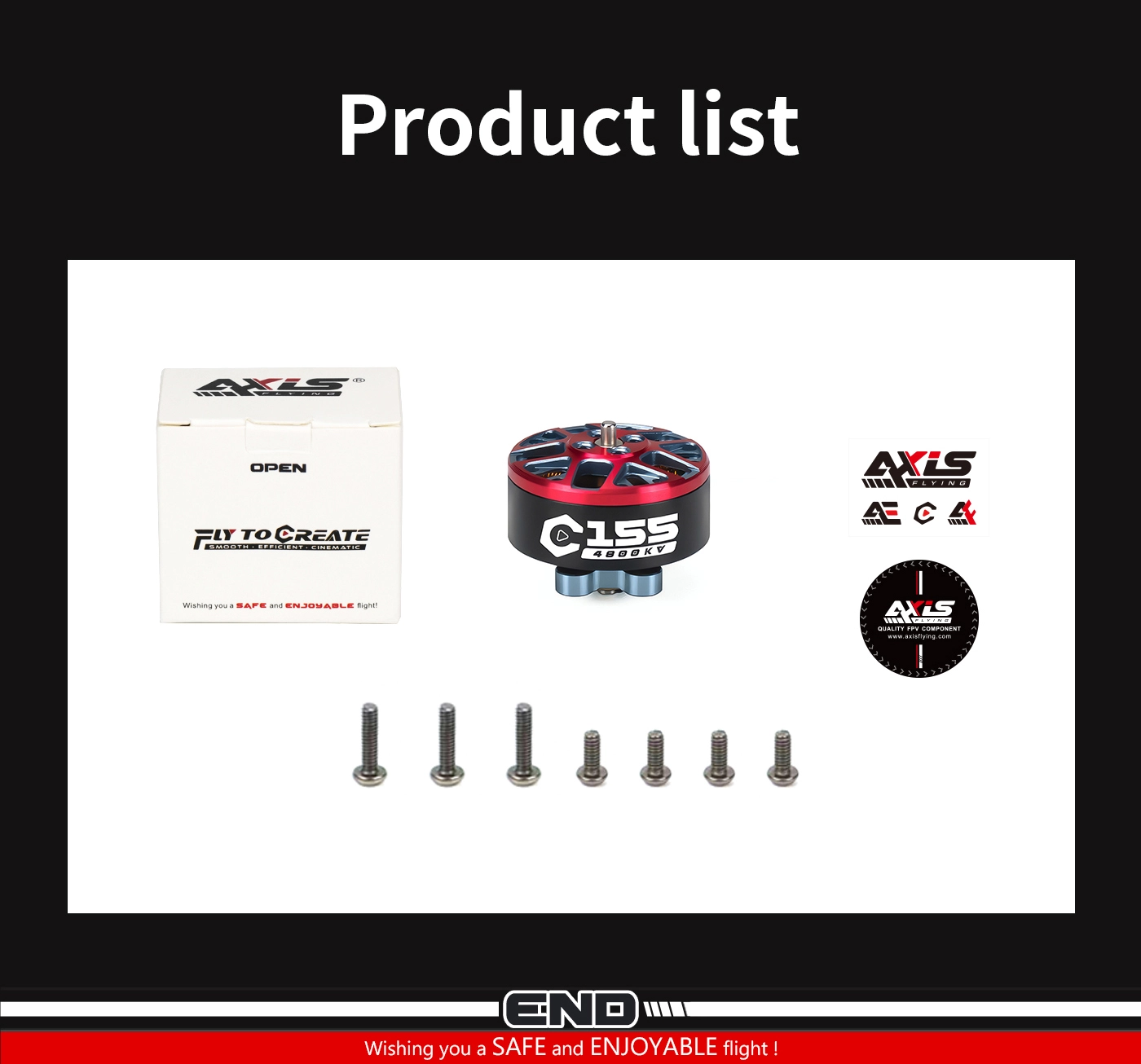

Package Contents
- C155 Brushless Motor ×1
- Mounting Screws ×1 set
- Washer & Lock Nut Set ×1
US Tariff Information
- Tariff: 30% + Section 301 additional duty (as of May 2026)
- Type 86 ($800 duty-free) is terminated; all commercial shipments are dutiable.
